A Detailed Guide To Taperlock Bushings : You Must Know

Are you looking for reliable solutions in power transmission systems? Taperlock bushings play a vital role in securing components like sprockets and pulleys to shafts. These versatile bushings offer stability, durability, and ease of installation.

In this post, we’ll explore the importance of taperlock bushings, their applications, and how they improve system efficiency. You'll also learn about their installation and maintenance to ensure optimal performance.

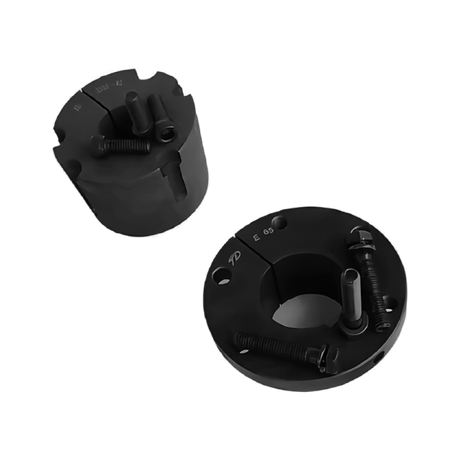

What Are Taperlock Bushings?

Taperlock bushings are mechanical components designed to securely connect a shaft to pulleys, sprockets, and other power transmission components. They are commonly used in machinery where precise and stable connections are required.

Key Features and Characteristics

• Tapered Design: A unique conical surface ensures a tight fit on the shaft.

• Easy Installation and Removal: Unlike traditional bushings, taperlock bushings are easy to install and remove without special tools.

• Durable Materials: Typically made from steel or cast iron, ensuring high strength and reliability.

The Taper-Lock Design

The taperlock bushing features a conical locking mechanism, which securely grips the shaft. This simple yet effective design ensures a stable and efficient power transfer. The tapered surface also minimizes the space required for mounting, making it a versatile option.

American and European Standard Taper Bushings

American Standard Taper Bushing and European Standard Taper Bushingare designed to fit different shaft sizes, offering flexibility across industries. These bushings are commonly used in sectors like textiles, paper mills, and heavy machinery, where precision and durability are crucial.

How Do Taperlock Bushings Work?

Taperlock bushings use a simple yet effective working mechanism based on static friction or wedge action. When installed, the tapered design creates a tight grip on the shaft, ensuring a secure connection between components like pulleys or sprockets.

The Tapered Bore

The tapered bore is crucial for how taperlock bushings function. It allows the bushing to fit snugly on the shaft, eliminating the need for a keyway. This design ensures a firm hold without slipping, providing reliable power transmission.

Materials Used: Steel and Cast Iron

Taperlock bushings are usually made from durable materials like steel and cast iron. These materials offer strength and resistance to wear, ensuring the bushing can withstand the pressure and demands of various industrial applications.

Keyway and Thread Machined to ISO Specifications

For added precision, taperlock bushings feature keyways and threads machined to ISO specifications. This ensures consistency and reliability, making them compatible with a wide range of shafts and components.

How Are Taperlock Bushings Installed?

Installing taperlock bushings is a straightforward process. Follow these steps to ensure a proper fit and reliable performance.

Step-by-Step Installation Process:

1. Cleaning the Components
   Before you begin, clean the bushing, the hub's bore, and the shaft. Remove any oil, dirt, or debris to prevent interference during installation.

2. Lubricating the Necessary Parts
   Apply lubricant to the threads and the points where the screws will be inserted. This helps ensure a smooth installation and prevents damage.

3. Properly Aligning the Bush with the Shaft
   Insert the bushing into the hub and align it with the shaft. Ensure the tapered surfaces are correctly positioned to allow a firm grip.

4. Tightening Screws and Securing the Assembly
   Gradually tighten the screws using a hexagonal wrench. Tighten in a cross-pattern to ensure even pressure across the bushing. Keep tightening until secure.

Important Tips for a Smooth Installation Process

• Check Alignment: Ensure the bushing is perfectly aligned with the shaft before tightening. Misalignment can lead to wear and failure.

• Avoid Over-Tightening: Tighten the screws evenly, but don’t overdo it. Over-tightening can damage the bushing or shaft.

• Use the Right Tools: Use the correct size hex wrench and a pipe for extra leverage, if needed. This ensures you can achieve the required torque without damaging the components.

How Are Taperlock Bushings Removed?

Removing taperlock bushings is a simple process, but it requires care to avoid damaging the components. Follow these steps to remove the bushing safely.

Step-by-Step Removal Process:

1. Loosening Screws and Inserting into Jacking-Off Holes
   Start by loosening each screw slightly. Insert screws into the jacking-off holes. These holes are specifically designed to help separate the bushing from the shaft.

2. Tightening the Screws to Disassemble the Assembly
   Gradually tighten the screws in a cross pattern. This will push the bushing away from the shaft, allowing it to be removed.

3. Ensuring Proper Handling and Using a Hammer for Assistance
   Once the screws are tightened, gently tap the large end of the bushing with a rubber mallet or block. This helps break the seal without causing damage.

Tips for Safe Removal Without Damaging Components:

• Don’t Force It: If the bushing resists, don’t force it. Make sure the screws are evenly tightened and aligned.

• Use Proper Tools: Always use the right size tools and a mallet to avoid damaging the bushing or shaft.

• Protect the Components: Use a soft hammer or block to prevent marks or dents on the bushing or other parts.

Major Applications of Taperlock Bushings

Taperlock bushings are widely used across various industries, offering reliability and durability in connecting components to shafts. Here are some of the major applications.

Industries That Use Taperlock Bushings

• Textile Industries: Taperlock bushings are essential in textile machinery, helping to secure pulleys and gears for smooth operation.

• Paper Mills, Rice Mills, and Solvent Mills: These industries rely on taperlock bushings to ensure the efficient running of large machinery, where precise connections are vital.

• Mining and Heavy Machinery: In mining, taperlock bushings are used to connect sprockets and shafts, providing the strength needed for heavy-duty operations.

Common Components That Use Taperlock Bushings

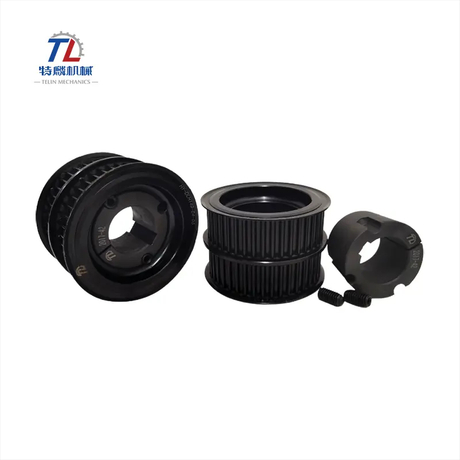

• Pulleys: Taperlock bushings are commonly used in pulley systems for secure, high-performance connections.

• Sprockets: They ensure smooth transmission of power in chain-driven systems.

• TB Shafts: Taperlock bushings are ideal for mounting components like sprockets onto TB shafts, ensuring a strong connection.

Benefits of Taperlock Bushings

Taperlock bushings offer several advantages, making them a popular choice for many industries. Here are some key benefits:

Ease of Installation and Removal

• No Specialized Tools Needed: Taperlock bushings are easy to install and remove. No special tools are required, saving time and reducing costs during setup or maintenance.

Versatility and Flexibility

• Works with Metric and Imperial Shafts: These bushings can accommodate both metric and imperial shaft sizes, offering flexibility in various applications.

• Accommodates Different Shaft Sizes: Taperlock bushings are compatible with a wide range of shaft sizes, including those specified by American Standard Taper Bushing and European Standard Taper Bushing, making them versatile for different needs.

Durability and Efficiency

• Long-Lasting Performance: Made from high-strength materials like steel and cast iron, taperlock bushings are designed for durability, providing reliable performance over time.

• Smooth Operation of Connected Components: Their precise fit ensures smooth operation, minimizing friction and wear on connected components, which helps improve overall system efficiency.

How to Choose the Right Taperlock Bushing?

Choosing the right taperlock bushing ensures optimal performance and longevity for your machinery. Here’s what to keep in mind:

Factors to Consider When Selecting the Right Bushing

• Shaft Size: Make sure the bushing fits the shaft precisely. Consider both the diameter and the shaft length to ensure a secure fit.

• Load Requirements: Determine the load the bushing will need to handle. If it’s for high-torque or high-stress applications, select a bushing with enhanced durability.

• Material Compatibility: Match the bushing material (steel, cast iron, etc.) to the specific needs of your machinery, such as resistance to corrosion or wear.

• Application Type: Whether it's for high torque, vibration, or heavy-duty use, choose a bushing that can handle the specific demands of your application.

Benefits of Consulting an Engineering Firm for Custom Solutions

An engineering firm can provide expert advice and custom taperlock bushings tailored to your unique specifications. They can help ensure you select the best fit for your machinery, preventing costly errors and ensuring long-term performance.

Taperlock Bushings vs Other Types of Bushings

When choosing a bushing for your application, it’s important to understand the differences between taperlock bushings and other types like QD bushings and Double Split Taper bushings.

Comparison Between Taperlock Bushings and Other Common Bushings

• Taperlock Bushings
  Taperlock bushings feature a tapered design that grips the shaft tightly. They are easy to install and remove, requiring no specialized tools. These bushings work well with both imperial and metric shafts.

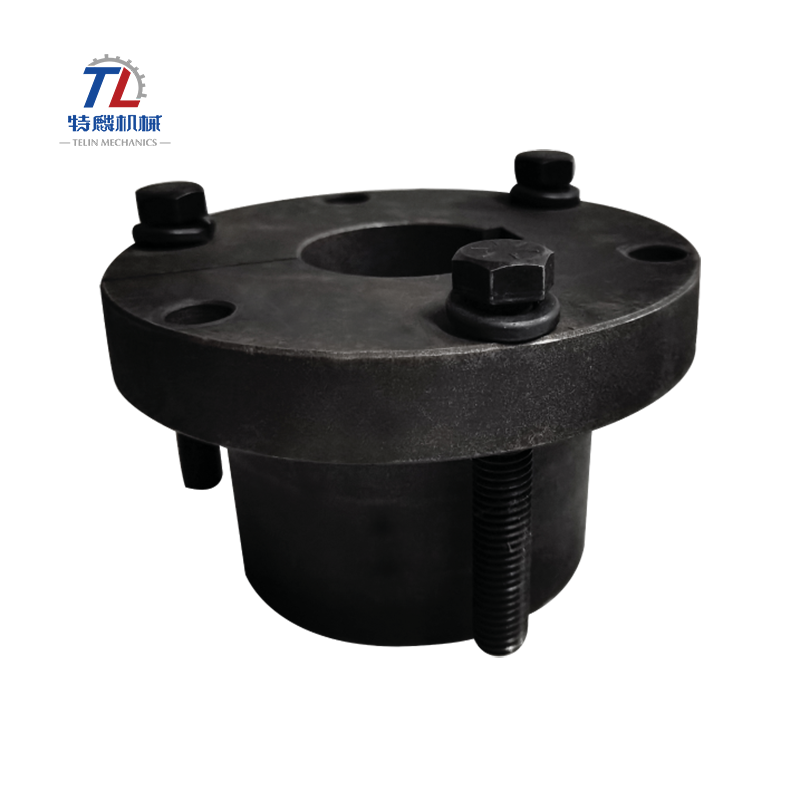

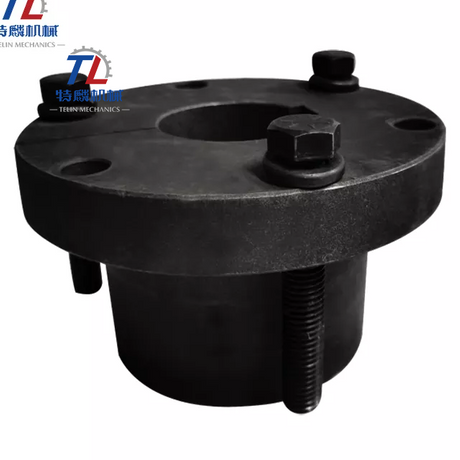

• QD Bushings (Quick Disconnect Bushings)
  QD bushings provide flexibility in mounting, offering two mounting configurations: standard and reverse. They feature multiple sets of holes for quick installation and removal, making them ideal for systems that require frequent maintenance.

• Double Split Taper Bushings
  Double Split Taper bushings are designed for high-torque applications. They have both internal and external keys to ensure a secure connection, providing extra stability. They are ideal for heavy-duty systems that need precise alignment.

Pros and Cons of Taperlock Bushings in Specific Applications

Common Mistakes to Avoid During Installation

Installing taperlock bushings requires attention to detail. Here are some common mistakes to avoid for a successful installation:

1. Over-Torquing Screws

Tightening screws too much can damage the bushing and the shaft. Always follow the recommended torque specifications to prevent overstressing the components.

2. Failing to Clean and Lubricate Components Properly

Before installation, clean the bushing, shaft, and hub. Failing to remove oil, dirt, or debris can interfere with the fit. Lubricate the threads and other contact points to ensure smooth operation.

3. Ignoring Correct Alignment

Misalignment can lead to premature wear and operational issues. Be sure to carefully align the bushing with the shaft to ensure it fits securely and functions properly.

4. Using Anti-Seize or Lubricant Improperly

While lubrication is important, using the wrong type or overapplying it can cause improper seating. Avoid using anti-seize compounds, as they can prevent the bushing from securing correctly.

Maintenance and Care Tips for Taperlock Bushings

Proper maintenance is key to ensuring the long life and reliable performance of taperlock bushings. Here are some essential care tips:

1. Regular Inspection and Tightening of Screws

Periodically check the screws to ensure they are properly tightened. Loose screws can lead to misalignment or slippage, causing wear. Tighten them according to the recommended torque specifications.

2. Cleaning and Re-Lubricating Components to Prevent Wear

Regularly clean the bushing, shaft, and hub to remove dirt, debris, or buildup. Re-lubricate the threads and other contact areas to reduce friction and ensure smooth operation. Proper lubrication helps prevent premature wear.

3. How to Identify Signs of Wear or Misalignment Early

Watch for signs like unusual noise, vibration, or difficulty in operation. These could indicate misalignment or wear. Regularly inspect for any unusual gaps or movement in the bushing, as these are early signs of potential issues.

Conclusion

Taperlock bushings are essential for ensuring secure and reliable connections in industrial machinery. Investing in high-quality bushings guarantees smooth operation and long-lasting performance. When purchasing, look for reputable suppliers offering durable and compatible taperlock bushings for your specific needs.

FAQ

Q1: What is a taperlock bushing?

A: A taperlock bushing is a mechanical component used to securely attach pulleys or sprockets to shafts through a tapered fit.

Q2: How do I install a taperlock bushing properly?

A: Clean the components, lubricate necessary parts, align the bushing with the shaft, and tighten screws gradually to secure the assembly.

Q3: Can taperlock bushings be used in high-torque applications?

A: Yes, taperlock bushings are designed to handle high-torque applications, offering stable connections for heavy-duty machinery.

Q4: What industries use taperlock bushings?

A: Taperlock bushings are commonly used in textile, paper mills, mining, and heavy machinery industries for secure component mounting.
