Views: 0 Author: Site Editor Publish Time: 2025-10-20 Origin: Site
The parallel tensioning method is one of the simplest and most efficient ways to maintain proper tension in timing belt systems. It works by pulling on two synchronous belts simultaneously, which keeps the belt tight without requiring any additional external tensioning components. This method’s key feature is its compactness and lack of redundant mechanisms, making it a streamlined solution for many applications.
In this method, tension is created by the arrangement of the belts themselves. The two belts run parallel and are pulled taut, ensuring consistent tension across the system. Since there is no need for extra tensioning pulleys or idler wheels, the design stays minimal and avoids complexity.
The absence of external tensioning structures means fewer moving parts, reducing potential points of failure. This makes the parallel tensioning method highly reliable and easier to maintain over time. The belts’ tension is balanced naturally by their layout and installation, which keeps the system stable during operation.
Cost-Effective: Without the need for additional tensioning components, assembly costs drop. This makes the method attractive for budget-conscious projects.
Compact Design: The tensioning mechanism is integrated into the belt layout itself, saving space in tight mechanical setups.
Reduced Failure Rates: Fewer mechanical parts mean fewer chances for breakdowns or wear, improving system reliability.
Simplified Maintenance: With no extra tensioning pulleys or devices, maintenance becomes straightforward, requiring less time and fewer tools.
Parallel tensioning works best in systems where space is limited and simplicity is desired. It suits many industrial machines, automation setups, and robotics where compactness and reliability are critical.
However, it is less appropriate for high-speed or high-load conditions where dynamic tension adjustments might be necessary. In such cases, other tensioning methods could offer better performance.
This method is ideal when the transmission system requires a stable, low-maintenance tensioning solution without complex mechanisms. It’s also favored in designs aiming to reduce assembly time and costs.
Tip: When using parallel tensioning, ensure both belts are installed with equal tension to maintain system balance and prevent uneven wear.
The medial tensioning method uses an inner tensioning pulley to maintain proper belt tension. This pulley can be either a smooth idler wheel without teeth or a synchronous idler wheel with teeth. The choice between these two types affects the system's performance, cost, and spatial requirements.
In medial tensioning, the tensioning pulley presses against the inner side of the timing belt. When a smooth idler wheel is used, the belt's toothed surface contacts the smooth pulley surface, relying primarily on friction to maintain tension. Alternatively, a synchronous idler wheel has teeth that mesh with the belt's teeth, providing a positive engagement that reduces slippage.
The medial tensioning pulley is typically mounted inside the belt loop, pushing outward to maintain tension. This positioning causes the belt to protrude slightly, which may increase the space needed around the system. The components involved include the idler wheel, its mounting bracket, and an adjustment mechanism to set the correct tension.
Smooth Idler Wheel:
Advantages: Lower cost, simpler design, and easier replacement.
Disadvantages: Relies on friction, which may cause slight belt slippage under high loads or speeds.
Suitable For: Applications with moderate speed and load requirements where cost savings are important.
Synchronous Idler Wheel:
Advantages: Teeth mesh with the belt, preventing slippage and improving power transmission accuracy.
Disadvantages: Higher cost and more complex design.
Suitable For: High-precision applications or those with high speed and load demands.
Choosing between these depends on the application's performance needs and budget constraints.
Space Requirements: The medial tensioning pulley causes the belt to bulge outward, increasing the system's spatial footprint. This makes it less suitable for compact designs.
Wear and Maintenance: The inner tensioning mechanism introduces additional contact points, which can increase wear on the belt and pulley surfaces. Regular inspection and maintenance are necessary to avoid premature failure.
Installation Complexity: The medial tensioning setup is more complex than parallel tensioning due to the additional components and adjustment mechanisms.
Cost Implications: Using synchronous idler wheels increases upfront costs but may reduce downtime and improve system reliability in the long run.
Overall, the medial tensioning method offers a balance between performance and complexity. It is ideal for systems where precise tension control is needed but space is not severely limited.
Tip: When using medial tensioning, consider the trade-off between cost and performance by choosing synchronous idler wheels for high precision and smooth idler wheels for cost-effective solutions.
The outer tensioning method is a commonly used technique for maintaining timing belt tension, especially in systems operating at low speeds and low acceleration. This method applies tension by pressing against the outer surface of the timing belt rather than the inner side, combining sliding and rolling friction to keep the belt tight.
In outer tensioning, a tensioning pulley or idler wheel contacts the outside flat surface of the timing belt. This contact creates friction that helps maintain the belt's tension. Unlike inner tensioning, which pushes the belt outward causing it to bulge, outer tensioning presses inward on the belt's smooth outer surface.
The tensioning pulley usually rotates freely, allowing the belt to slide slightly while still maintaining adequate tension. This combination of sliding and rolling friction helps absorb minor changes in belt length due to temperature or load variations.
Because the tensioning force is applied externally, the belt does not deform inward, reducing the risk of tooth damage or misalignment. However, the belt's outer surface is more exposed to wear from friction in this method.
Outer tensioning is best suited for applications where:
The system runs at low speeds and low acceleration. High-speed or high-load operations can cause excessive wear or slipping.
Space constraints prevent the use of bulky inner tensioning mechanisms.
The belt surface can tolerate some wear without affecting performance.
Simplicity and cost-effectiveness are priorities over precision tension control.
This method is often found in light-duty machinery, conveyor systems, or equipment where tension adjustments are infrequent.
One key consideration of outer tensioning is the effect on the timing belt's outer surface:
Wear and Tear: Continuous sliding friction between the tensioning pulley and the belt surface can cause surface flatness, grinding marks, or abrasion over time.
Surface Integrity: Damage to the belt surface may reduce its lifespan and affect overall system reliability.
Maintenance Needs: Regular inspection of the belt surface is necessary to detect early signs of wear and replace the belt before failure.
To minimize surface damage, tensioning pulleys should be made from materials with low friction coefficients or coated to reduce abrasion. Proper alignment and tension settings also reduce unnecessary friction and wear.
Tip: When using outer tensioning, select tensioning pulleys with smooth, wear-resistant surfaces to protect the timing belt and extend its service life.
Choosing the right tensioning method for timing belts depends on several key factors. These include the specific needs of the transmission system, the environment where it operates, and the cost and maintenance demands. Understanding these helps ensure the belt runs efficiently and lasts longer.
Every transmission system has unique requirements based on speed, load, accuracy, and space constraints. For example:
High-speed, high-load systems often need tensioning methods that provide precise control and prevent belt slippage. Medial tensioning with synchronous idler wheels suits these well.
Low-speed or light-load applications can use simpler methods like outer tensioning, which is cost-effective but less precise.
Compact designs benefit from the parallel tensioning method, which avoids bulky tensioning components and saves space.
Systems requiring minimal maintenance may prefer parallel tensioning for its fewer moving parts and easier upkeep.
Matching the tensioning method to these needs helps maintain stable power transmission and reduces the risk of belt failure.
The working environment affects which tensioning method is best:
Dusty or dirty environments may cause faster wear on exposed tensioning components. Methods with fewer exposed parts, like parallel tensioning, reduce contamination risk.
High-temperature settings can cause belt material to expand or degrade faster. Tensioning methods that allow easy adjustment, such as medial tensioning, help compensate for these changes.
Space restrictions in cramped machinery limit the use of tensioning methods that increase the system's footprint, favoring compact solutions like parallel tensioning.
Corrosive or wet environments require corrosion-resistant materials for tensioning pulleys and components, influencing the choice of method and materials.
Considering environmental factors ensures the timing belt system operates reliably under real-world conditions.
Budget and maintenance capacity also influence the choice:
Lower-cost projects often lean toward outer tensioning or parallel tensioning methods, which require fewer components and simpler installation.
High-performance systems justify the expense of medial tensioning with synchronous wheels for improved accuracy and longer belt life.
Maintenance frequency matters; methods with fewer moving parts reduce downtime and labor costs. Parallel tensioning excels here.
Replacement parts availability and ease of service can affect total lifecycle costs. Smooth idler wheels in medial tensioning are cheaper and easier to replace than synchronous ones.
Balancing upfront costs against long-term maintenance needs helps optimize total system value.
Tip: Evaluate your system’s speed, load, space, environment, and budget carefully to select the tensioning method that offers the best balance of performance, durability, and cost-efficiency.
Proper tensioning plays a vital role in timing belt efficiency and lifespan. Each tensioning method affects how the belt performs and how long it lasts in unique ways. Understanding these impacts helps design systems for optimal operation and durability.
The right tension keeps the belt tight enough to prevent slipping but not so tight it causes excess friction. Slippage wastes energy and reduces system accuracy. Too much tension increases bearing load and power loss.
Parallel Tensioning: Offers stable tension without extra parts, minimizing friction and energy loss. Its simplicity helps maintain consistent belt tension, which boosts efficiency.
Medial Tensioning: Allows precise tension control, especially when using synchronous idler wheels. This reduces slippage and improves power transmission accuracy. However, extra pulleys add friction points, slightly reducing efficiency.
Outer Tensioning: Relies on friction between the pulley and belt surface, which can cause minor slip and energy loss, especially at higher speeds or loads. It suits low-speed systems where efficiency demands are lower.
Proper alignment and tension adjustment in all methods are crucial to avoid efficiency drops.
Tensioning impacts belt wear and overall service life. Incorrect tension or unsuitable methods can cause premature failure.
Parallel Tensioning: With fewer moving parts and no additional pulleys, wear points are minimized. This reduces belt and component degradation, extending service life.
Medial Tensioning: The inner pulley contacts the belt’s toothed or smooth side, potentially increasing wear. Synchronous idler wheels reduce slippage but add complexity and maintenance needs. Regular inspection is essential to prevent early belt damage.
Outer Tensioning: Sliding friction on the belt’s outer surface accelerates wear, causing surface flatness or abrasion. This shortens belt life unless pulleys have wear-resistant coatings and proper tension is maintained.
Choosing the right tensioning method helps balance wear rates and replacement intervals.
To maximize belt efficiency and longevity, consider these design tips:
Select tensioning method matching application needs: High-speed, high-load systems benefit from medial tensioning with synchronous idlers; compact or low-maintenance setups favor parallel tensioning.
Maintain correct tension: Use tension measurement tools and adjust regularly to avoid over- or under-tensioning.
Ensure proper pulley alignment: Misalignment causes uneven wear and energy loss.
Use quality materials: Wear-resistant pulleys and belts suited to the environment reduce degradation.
Plan maintenance schedules: Regular inspection and timely replacement prevent unexpected failures.
By integrating these practices with the appropriate tensioning method, systems achieve reliable, efficient operation and longer belt life.
Tip: Regularly monitor and adjust timing belt tension to prevent slippage and excessive wear, maximizing both efficiency and service life.
The article discusses three common timing belt tensioning methods: parallel, medial, and outer tensioning. Each method has unique advantages and is suitable for specific applications. Best practices include maintaining correct tension and alignment to maximize efficiency and belt life. Future trends may focus on improved materials and innovative designs for enhanced performance. Guangzhou Telin Machinery Parts Co., Ltd. offers products that provide reliable, efficient solutions, emphasizing quality and innovation in timing belt systems.

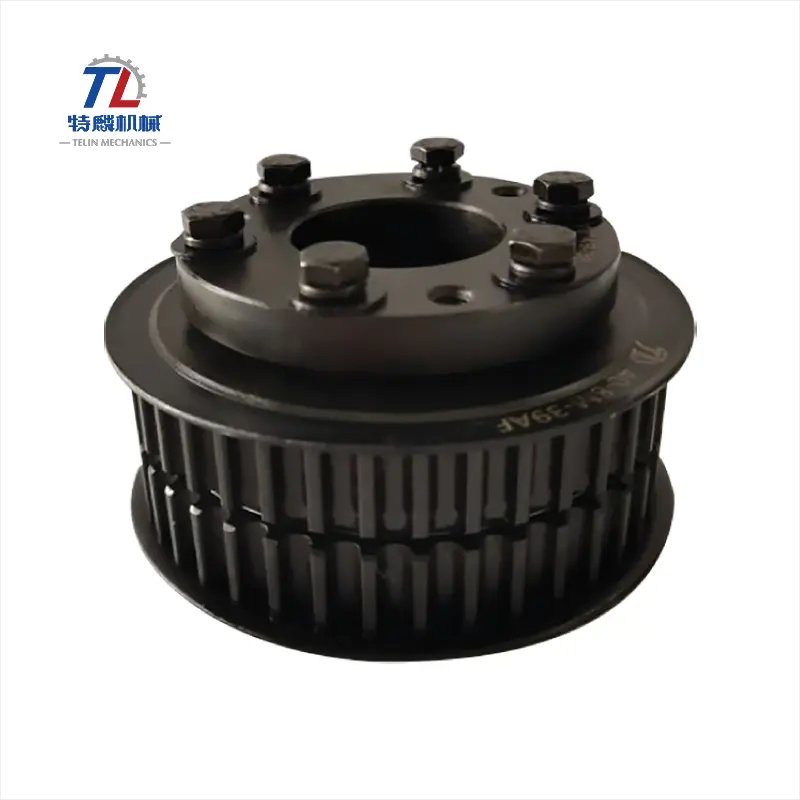

A: A Timing Pulley is a component used in timing belt systems to transmit power by engaging with the belt's teeth, ensuring synchronized movement.
A: Parallel tensioning benefits Timing Pulley systems by providing a compact, cost-effective solution with fewer moving parts, reducing failure rates and simplifying maintenance.
A: Medial tensioning is ideal for Timing Pulley systems requiring precise tension control, especially in high-speed, high-load applications where slippage must be minimized.
A: Outer tensioning is a cost-effective method for Timing Pulley systems, suitable for low-speed applications where simplicity and budget constraints are priorities.
A: Proper tensioning methods enhance Timing Pulley system longevity by minimizing wear and avoiding premature belt failure, ensuring efficient operation over time.
